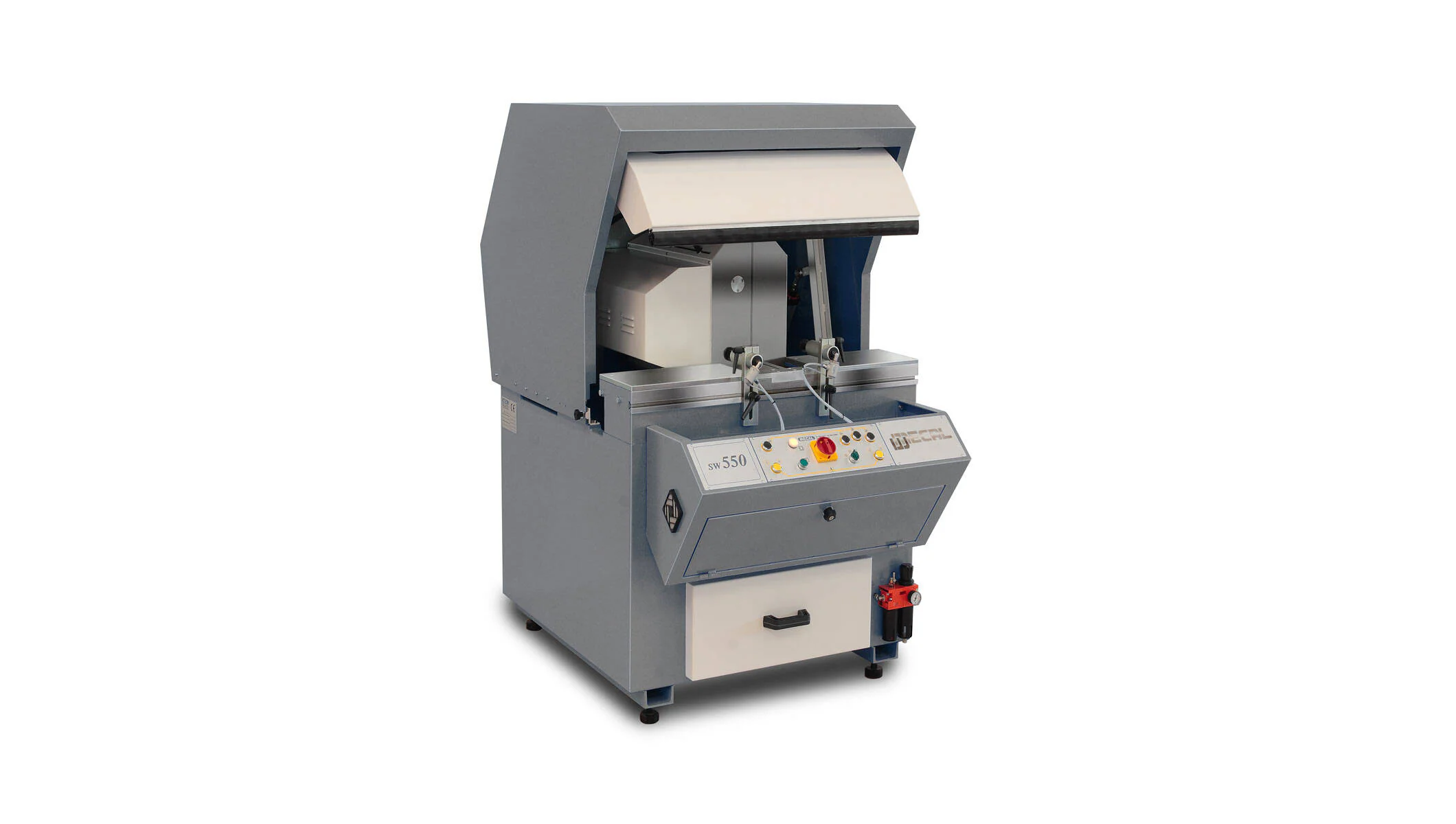

Aluminium Processing - Complementary machines - sw 550

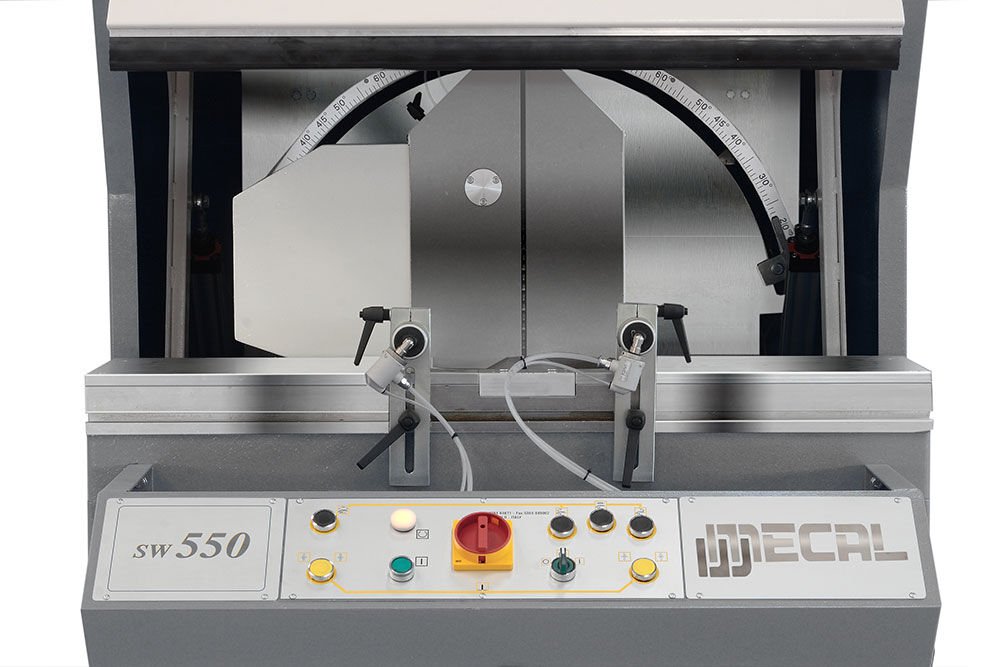

Single mitre saw with horizontal feed and disappearing blade Ø 550 mm.

Advantages
  • Pneumatic working cycle.
  • It’s able to perform cuts at 22,5° or 45°, 90°, 135° or 157,5°.
  • The intermediate degrees can be obtained by manually setting mechanical stops.
  • Total isolation for the noise reduction and the elimination of any other risks.
  • Frontal and straight blade feed with speed adjustments.
  • Hydro-pneumatic blade feed.
  • Wide cutting capacity by means of sawblades dia. 550 mm.
  • All the working scraps are carried in the middle of the base.
  • Possibility to use a blade with a dia. 550 mm, with lowered tool rotation centre (SW 550-R Plus).
Technical data
Rotation of the cutting unit toward right deg 90° - 45° - 22,5°
Rotation of the cutting unit toward left deg 90° - 45° - 22,5°
Sawblade diameter mm 550
