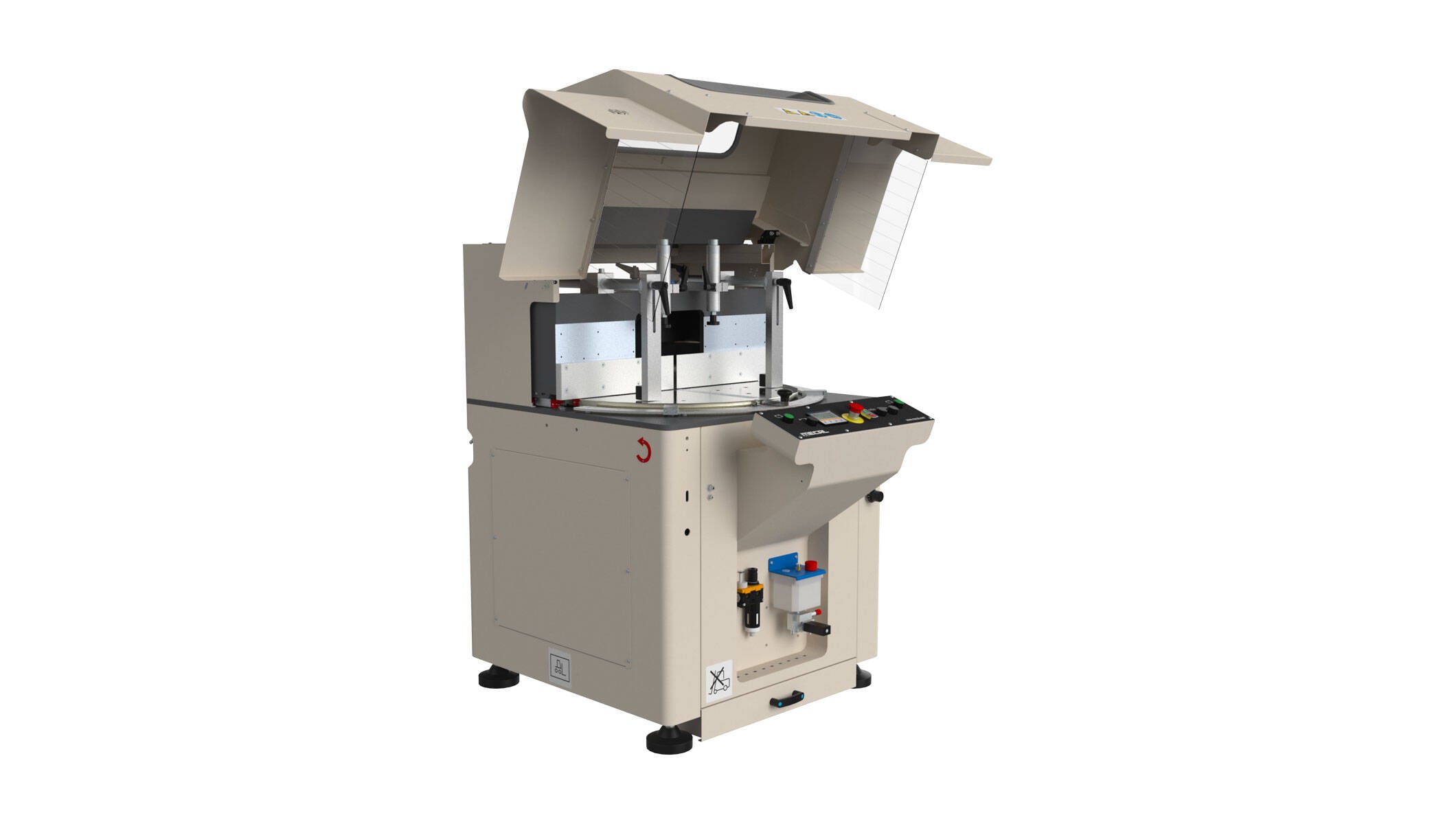

as 600 top factory digit mql

Name: as 600 top factory digit mql
Brand: SCM

(512) 931-1962

as 600 top factory digit mql Aluminium Processing

Request information

Single mitre saw with upwards blade, Ø 600mm

Manual rotation of the working table up to 20° both toward right that toward left.
Quick positioning of the working table on pre‐selected angles (90°, 45°).
Manual positioning at any intermediate angle, with pneumatic locking.
DIGIT = with digital display for the angular positioning of the cutting plane.
MQL = Lubrication tool with Minimal Quantity Lubrication

Advantages

Blade feed by mean of hydro‐pneumatic unit.
The structure foreseen for the support of the profile is shiftable manually, to increase the cutting capacity at 90°.
Protective hood of the cutting zone with pneumatic drive movement.
Lubrication tool with Minimal Quantity Lubrication.
Pre‐arranged to connect a vacuum cleaner.

Technical data

Rotation of the cutting unit (right)		20°
Rotation of the cutting unit (left)		20°
Sawblade diameter	mm	600
Sawblade bore	mm	50
Speed of tool rotation	rpm	2800
Blade motor power	kW	4
Installed electric power	kW	4,2
Compressed air supply	bar	7
Air consumption per working cycle	Nl	16
Length	mm	± 920 / 1520
Width	mm	± 1320
Height	mm	± 1465 / 1800
Weight	kg	± 470

Documentation

as_600_top_factory_digit_mql_EN Download
