mc 316

Name: mc 316
Brand: SCM

(512) 931-1962

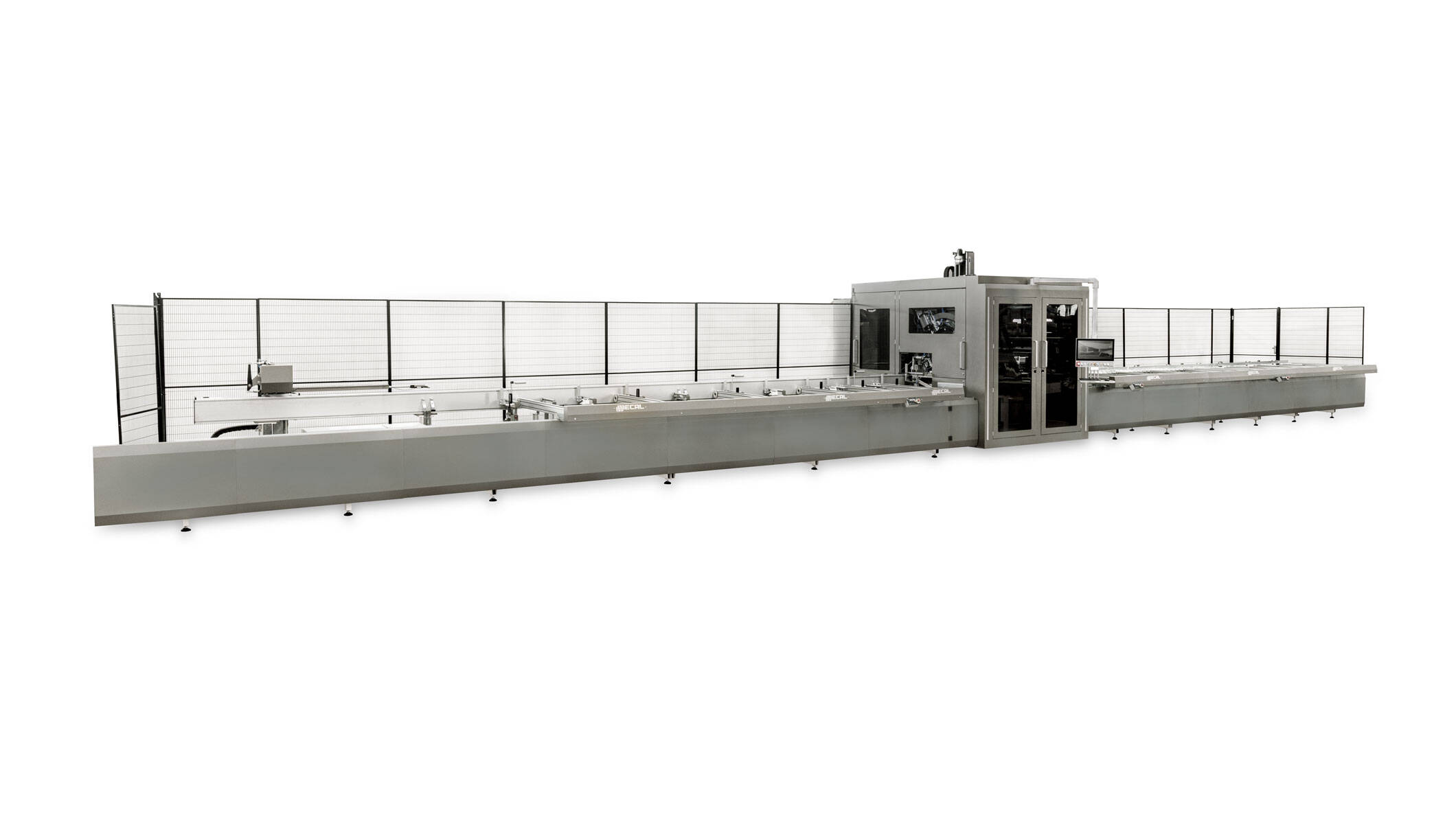

Machining and cutting centre for aluminium profiles

Advantages

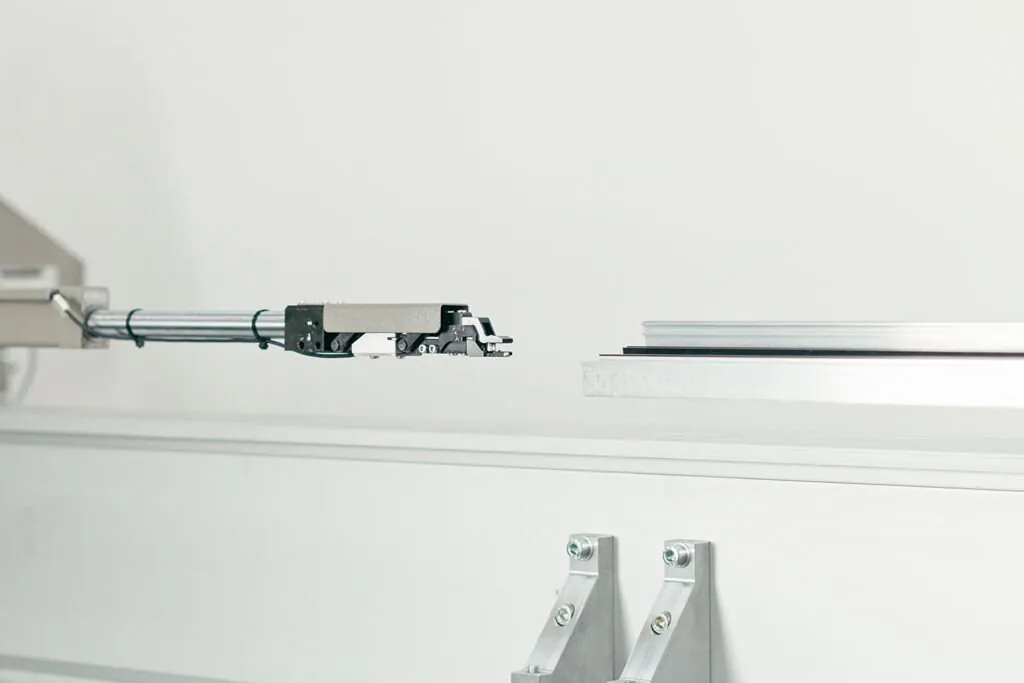

Bar feeder with automatic loading composed of three axes (U – V – W)
“C axis” optional gripper rotation.

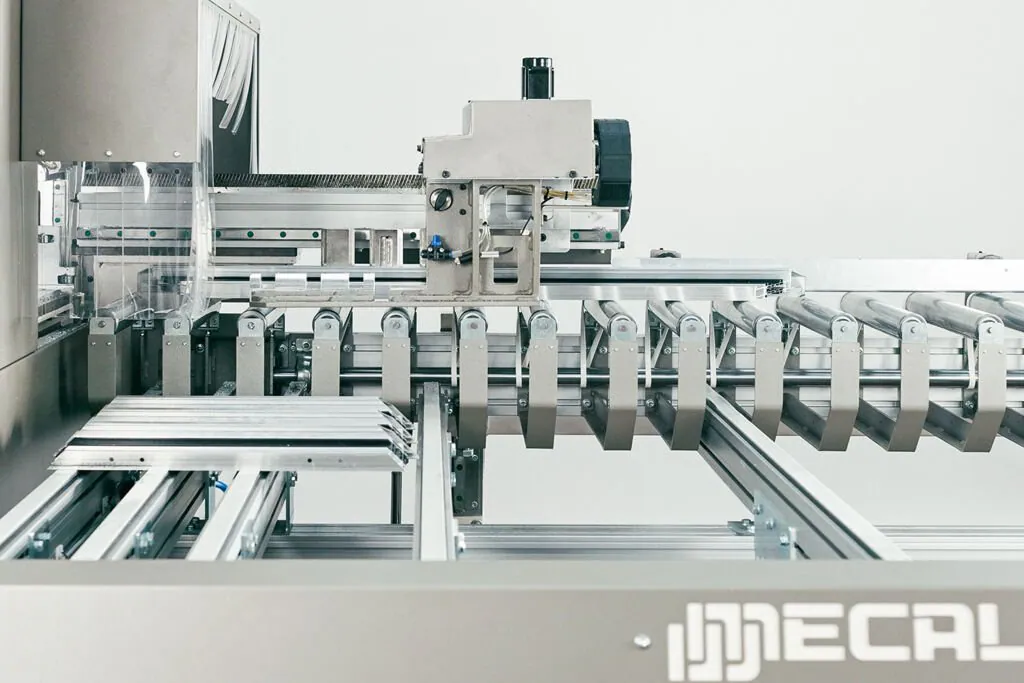

Unloading bench made by a conveyor belt with processed pieces storage.
Milling-drilling module
4 axes: X = longitudinal; Y = transversal; Z = vertical; A = slewing ring rotation
All milling-drilling units are mounted on a slewing ring, they can be positioned continuously from 0° to 360°, controlled by CNC, nr. maximum electrospindles = 6

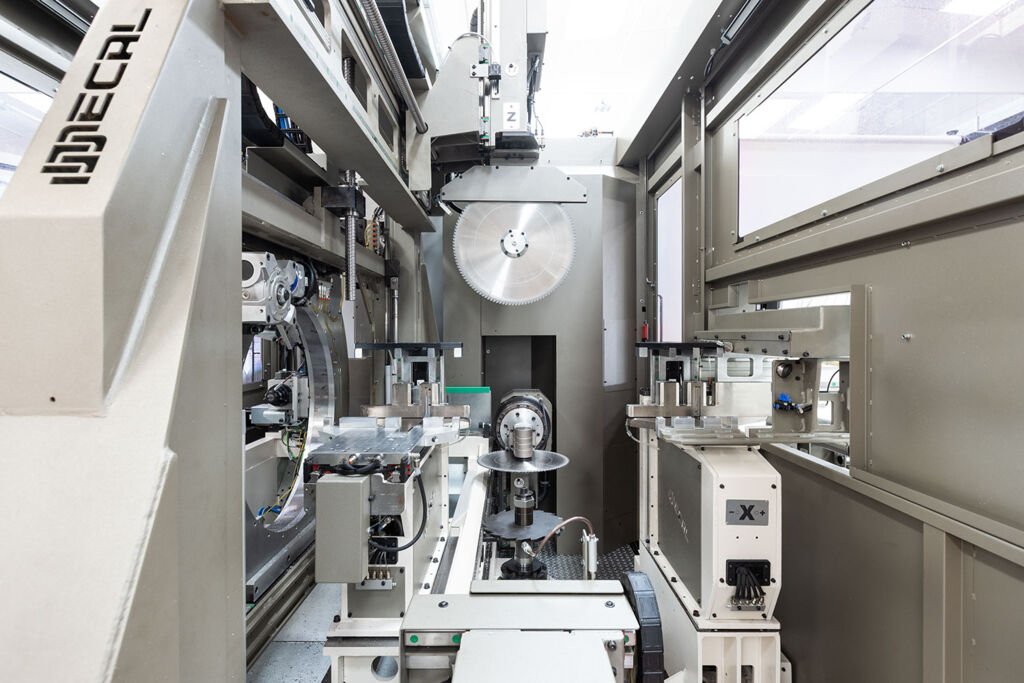

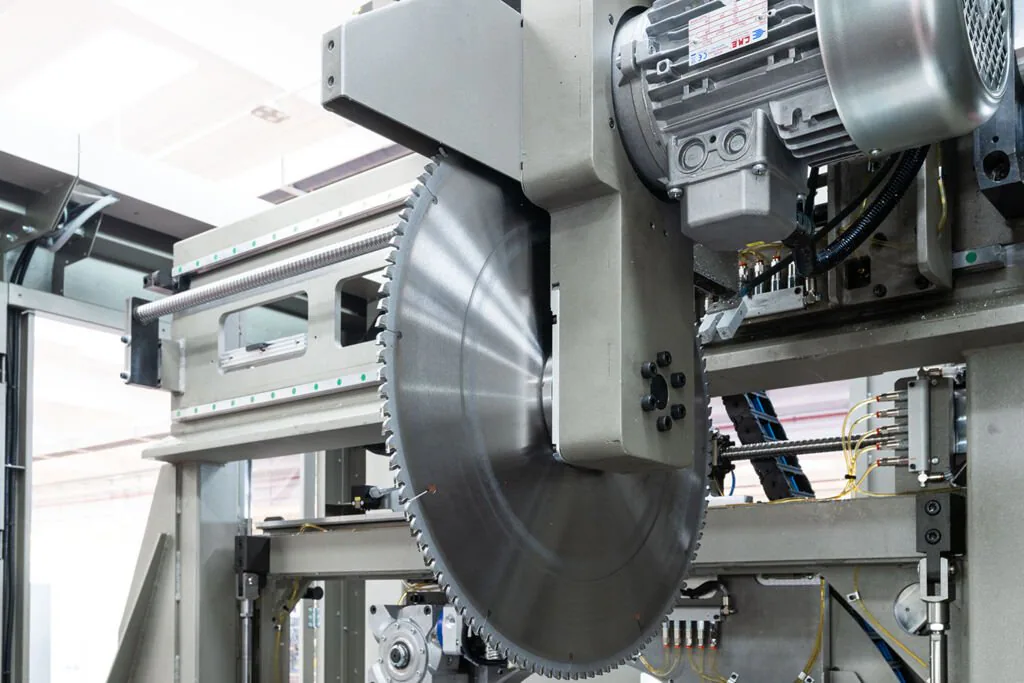

Cutting module: cutting unit with three-axis descending movement.
Y1 = transversal cutting unit; Z1 = vertical; B = cutting unit rotation
Blade Ø 550 mm.
Angles 22,5° / 157,5° in continuous
Vertical – horizontal clamps

Technical data

X axis stroke - Gripper	mm	9050
X axis positioning speed - Gripper	m/1’	130
X axis travel - Turntable portal	mm	350
X axis positioning speed - Turntable portal	m/1’	50
Y axis travel - Turntable portal	mm	586
Y axis positioning speed - Turntable portal	m/1’	50
Z axis travel - Turntable portal	mm	580
Z axis positioning speed (max)	m/1’	50
A axes - Turntable portal	deg	± 185°
Electrospindle rated power	kW	4,5 (S1) 5,4 (S6)
Cooling system		air
Tool holder gripper		ER32
Rotation speed (max)	rpm	24000
Weight	kg	100500

	mk-I	mk-II	mk-III	mk-IIV	mk-V	mk-VI
Position of the profile magazine on loading	sx	sx	sx	sx	sx	sx
Bar handling unit	●	●	●	●	●	●
Rotation of the gripper	◻︎	◻︎	◻︎	◻︎	◻︎	◻︎
Main Milling Unit (Turntable)	●	●	●	●	●	●
Vertical cutting unit	●	●	●	●	●	●
Horizontal cutting unit		●			●	●
End Focing Unit (Cutter Group)			●		●
Swiveling Unit for Milling / Tapping (Heads)				●		●
Extraction Unit	●	●	●	●	●	●
Machined parts warehouse (discharge)	●	●	●	●	●	●
Number of CNC axes	10/11	13/14	13/14	13/14	16/17	16/17
