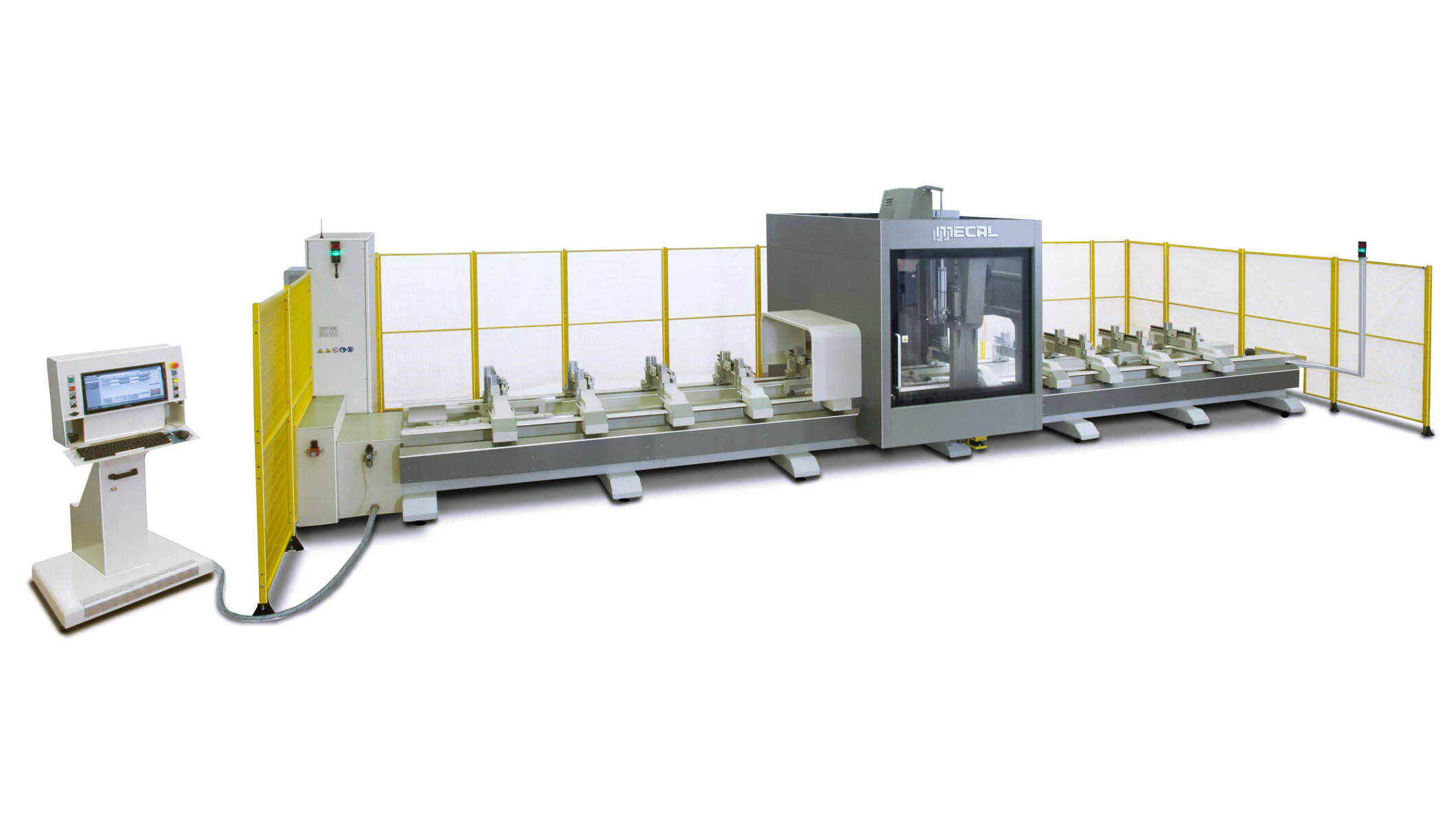

mc 302 geos 5 mdt

(512) 931-1962

• 5 axis (X, Y, Z, C, A) managed by CNC.
• It’s designed for working aluminium profiles of big dimensions.
• MDT means “Cutting Module”. It is a system to obtain multiple pieces derived from a single profile bar. The clamps used are equipped with independent drive.
•
• It is expected that each workpiece is held by at least two vices; once cut, the segment obtained is automatically moved along the longitudinal axis of the machine, up to reach a given position.
• Suitable for milling, drilling, tapping and cutting on the 5 sides of aluminium and light alloys profiles.

Advantages

• The axis slide on precision profile guides and are driven by motors operated with digital systems.
• All slide ways and ball recirculation screws are lubricated through an automatic centralized system.
• Clamp with rapid adjustment.
• The vices slide on precision profile guides and are positioned with independent motorization on each clamp, managed by CNC.
• The independent powered system allows the positioning of each individual clamp unit in a very reduced time. This system allows the automatic repositioning of the clamp during the machining.
• Fully equipped with digital technology. The data communication is via optical fiber, ensuring high transmission speed and a complete absence of interferences caused by external factors (frequency, voltage).
• The longitudinal area of the machine can be used as a single working field or in pendular mode obtaining 2 separate working zones, with loading and unloading of the pieces in masked time. You can machine different pieces inside the 2 working areas.

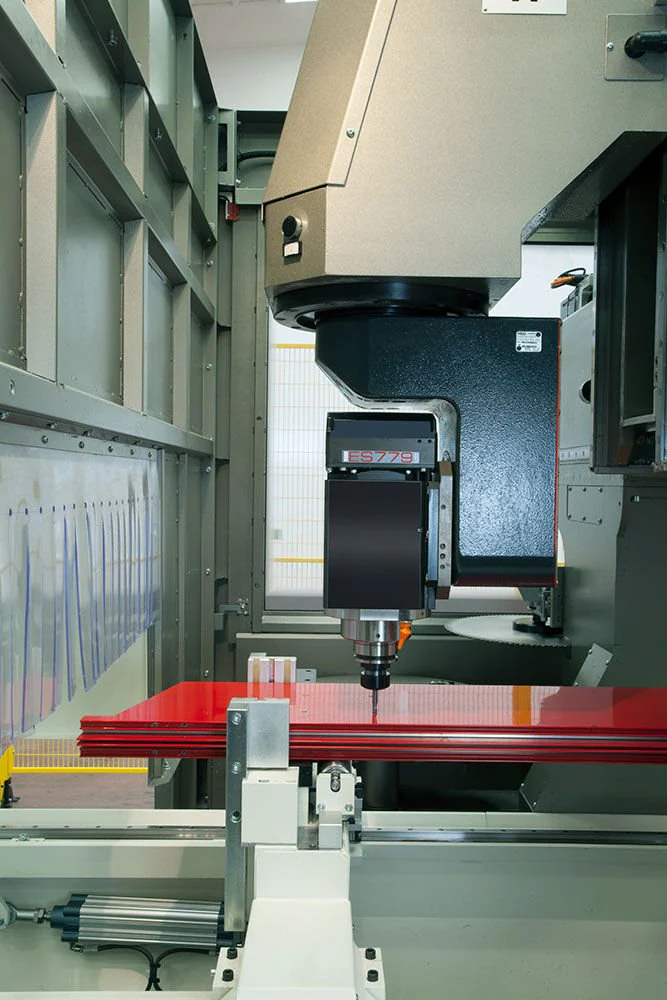

• The electric spindle liquid cooled, with HSK F 63 tool holder and power 12 kW, with encoder, allows the execution of rigid tapping (M20).

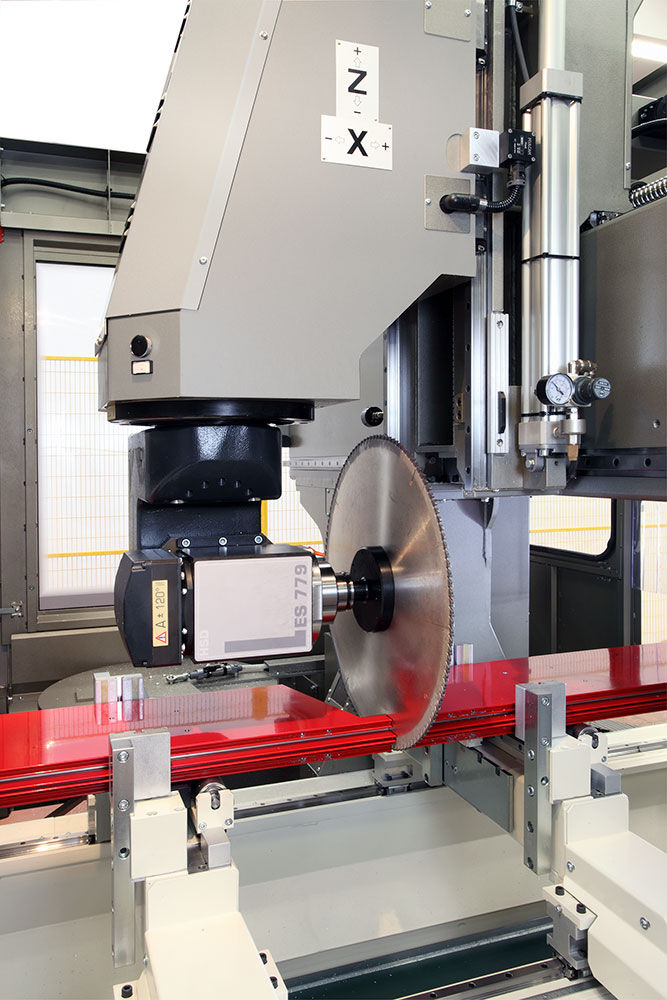

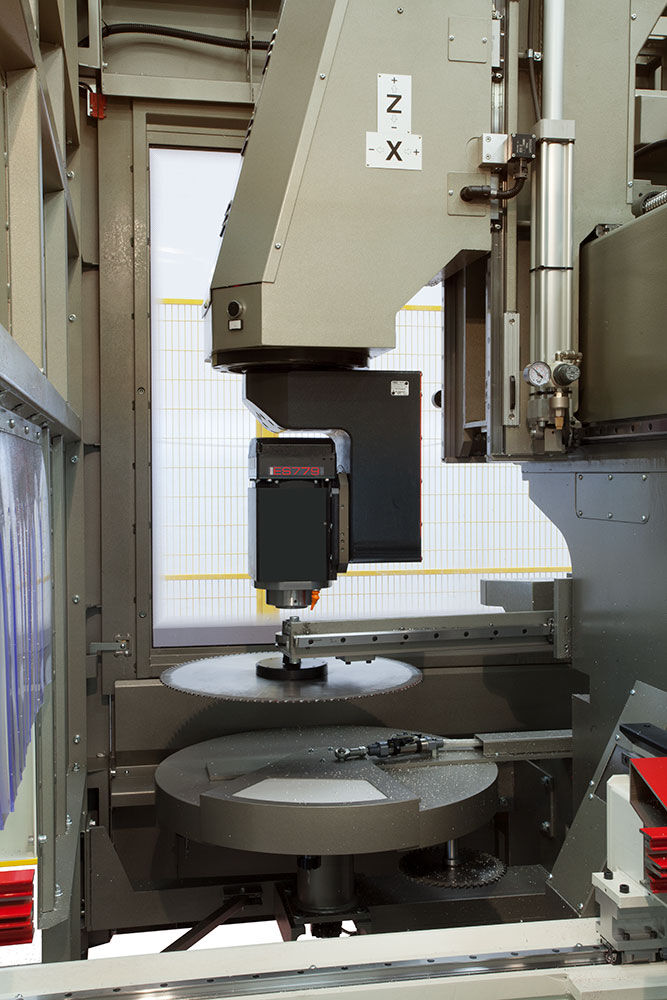

• The rotating tool magazine with 18 positions is located on the carriage of the machine and thus reducing significantly the tool change time. The blade (max Ø 500 mm) is placed on the carriage on an extra tool magazine.
• Milling operations can be performed with linear and circular interpolation of the axes X?Y?Z.
• The strong base formed by tubulars guarantees the fundamental structural rigidity of the machine.
• The tools cooling is realized through a centralised minimal system.

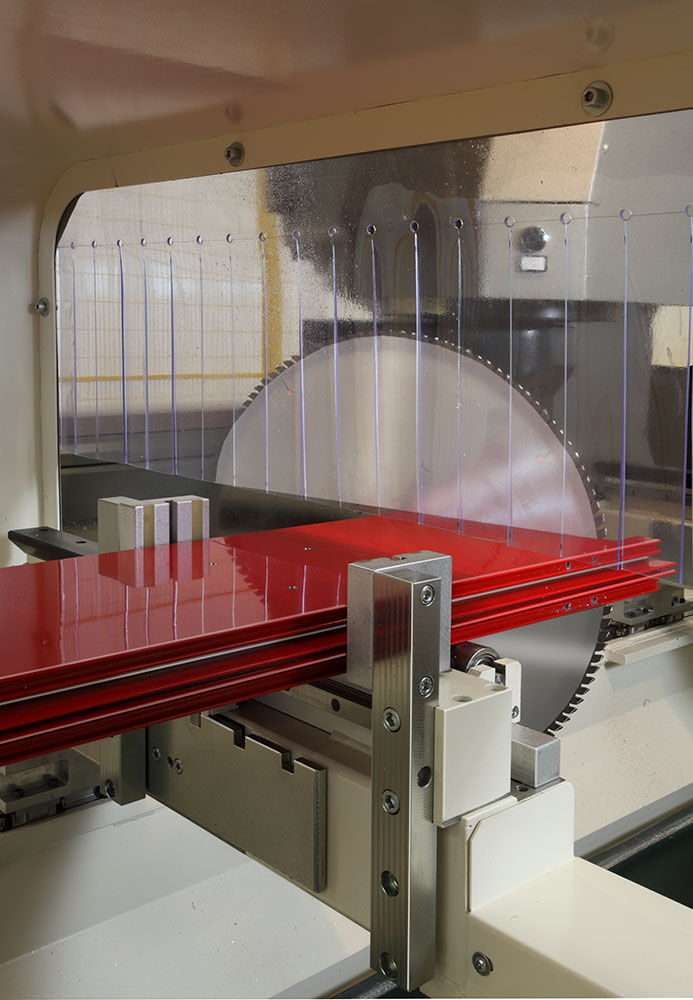

• Equipped with cutting module (MDT), a system to obtain multiple pieces derived from a single profile bar.
• It is expected that each workpiece is held by at least two vices. Once cut, the segment obtained is automatically moved along the longitudinal axis of the machine, up to reach a given position.
• Pre‐arranged for the inclusion of a motorized belt conveyor for evacuation of chips.

Technical data

X axis stroke	mm	8600 10600 12600
X axis rapid speed max.	m/1’	70
Y axis stroke	mm	1570
Y axis rapid speed max.	m/1’	60
Z axis stroke	mm	740
Z axis rapid speed max.	m/1’	40
Rotation A Axis	deg	± 120°
Rotation C Axis	deg	± 210°
Electrospindle rated power	kW	10
Max speed rotation	rpm	24000
Cooling system		Liquid
Tool holder cone		HSK-F63
Blade diameter max.	mm	500
Side & Face milling cutter diameter max.	mm	200
Weight	kg	9000 10500 12000
