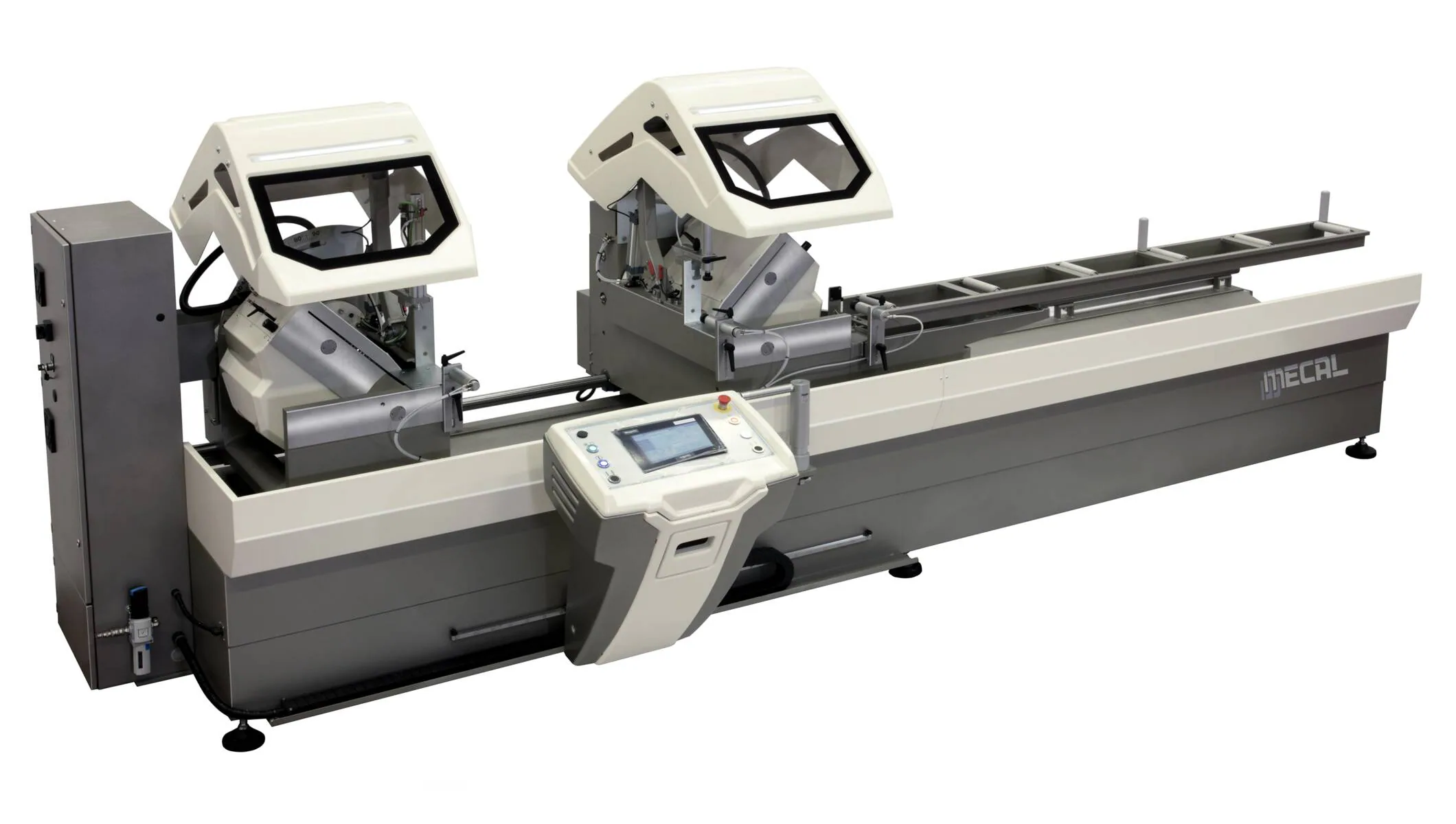

sw 453 argus

(512) 931-1962

• Powered positioning of the movable unit.

• Pneumatic tilting of the heads (90°, 45° or 22,5°).

• The intermediate degrees can be obtainedby manually setting mechanical stops.

• Realized with cutting lenght of 4000 mm, 5000 mm, 6000 mm.

• Equipped with industrial computer (HMI 10.0″ Touch Screen).

Advantages

• Electro-welded sheet base which has been designed in such a way to offer the maximum rigidity and use practicality.

• Frontal and radial blade feed with speed adjustments.

• Hydro-pneumatic blade feed.

• Wide cutting capacity by means of sawblades Ø 500 mm.

• Dynamic protection guards for a total covering of the cutting area.

• Pre-arranged to connect an exhaust extractor for swarfs.

• Pre-arranged to connect a motorized belt conveyor.

• Mist spray lubrication tools (Venturi system).

Technical data

				SW 453	SW 553	SW 553-R
Electrical power supply				400 V - 50 Hz - 3 ~ + N + PE
Max. total electric power			kW	5,5 (9,5)	7 (11)	7 (11)
Numerical control
Type				IPC (Industrial PC)
Monitor				10” touch screen
Blade motor characteristics
Power			kW	2x2,2	2 x 3	2 x 3
Max. revolutions			rpm	2780
Pneumatic supply			bar	7
Air consumption
Machine			NI/ciclo	53		56
Blade standard cooling			NI/min	100
Noise emission
Equivalent continuous sound level (Leq)			dB(A)	99,1
Standardised sound power level			dB(A)	118,8
Blade characteristics
outer			mm	500	550
inner			mm	30	30
Body thickness			mm	3,2	3,5
Tooth thickness			mm	4,0	4,5
Tooth no.				120	140
Cutting angles
Inclination			°	22,5 ÷ 90	22,5 ÷ 90	45 ÷ 90
Standard cut length
Max. c/c distance	Contemporary cut	mm	4000/5000/6000	5000/6000	5000/6000
	Over size cut		(See information note below)
Min. c/c distance	Contemporary cut	mm	400	430	530
	Under size cut		260 ÷ 400	350 ÷ 430	450 ÷ 530
	Ultra short cut		0 ÷ 260	0 ÷ 350	0 ÷ 450
Total weight				1850 / 1950 / 2050
