stefani one单面重型高速封边机

(512) 931-1962
封边机,上胶封边机 - 自动单面封边机 - stefani one单面重型高速封边机

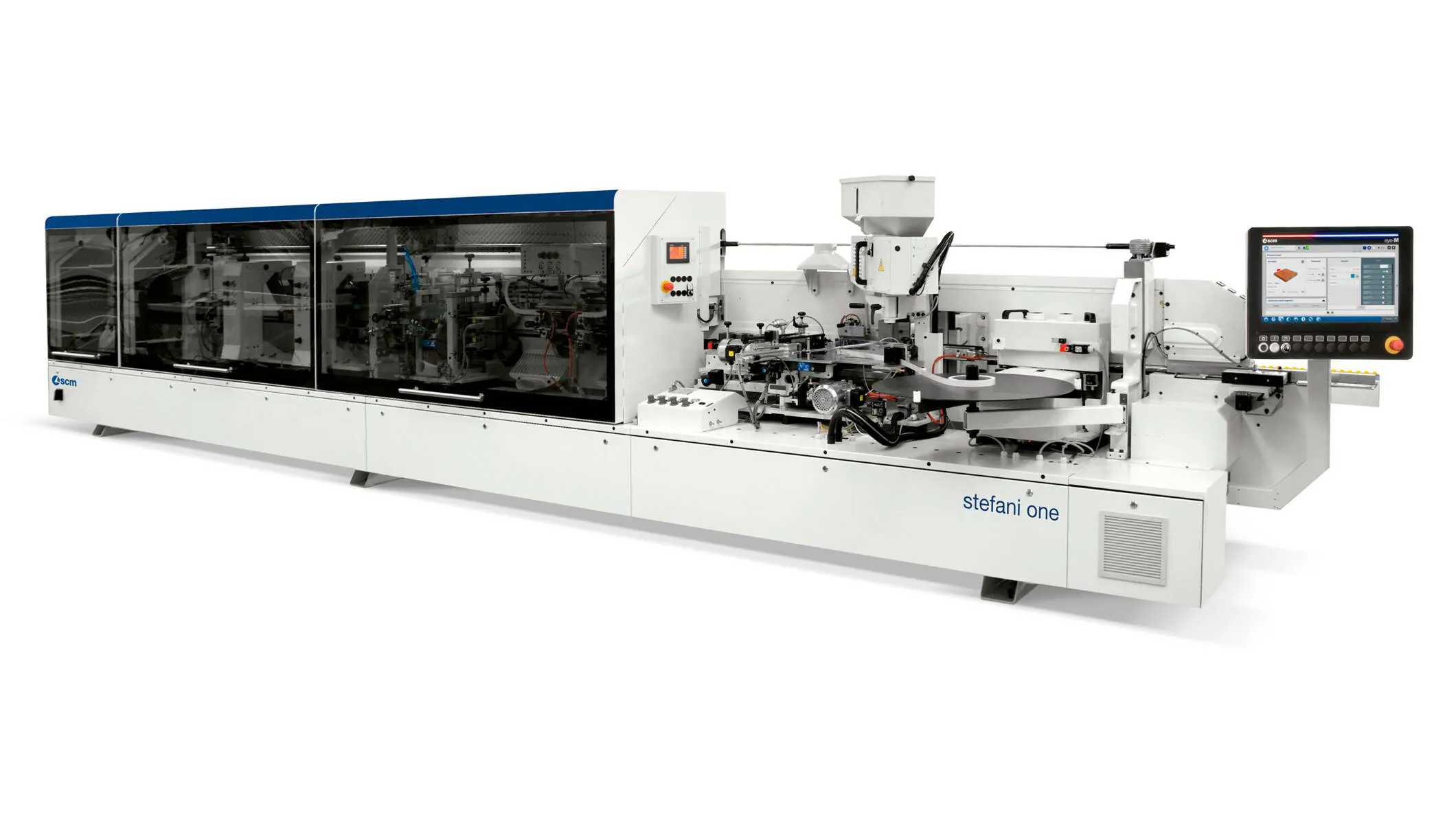

stefani one是一款高端的单面封边机,专为大型工业企业及超密集使用而设计。大至16米的模块长度使其能够实现软成型构件、J-型、门和台面的完整、定制化的封边过程,同时使用能够获得最新精整水平的材料。多种重载加工单元为高生产力和低运行成本提供了保证。由于采用特殊的设计,这些单元只需触摸按钮即可加工任何类型的生产组合。

优势

加工精度毋庸置疑

新一代的加工单元刚度提高15%,对板材的侵害性降低了50%,从而保证了完美的工件质量。加工单元配备尺寸和重量减少50%的数控变位机(精度达到0.01 mm),能够实现持续的精整加工,速度高达40 m/min,通过超精准的刀具/电机连接提供辅助。

我们总是会从板材的角度来考虑过程。

顶级设计,工业性能

J型构件、门、后成型台面、直型或斜角抽屉、精致/异型橱柜门(无论是否使用保护膜)始终可以按照高生产标准进行生产,每个班次都能实现最大生产力。由于机床的承载结构和不会变形的进给轨道,在任何工况下都能保证快速、持续的运动。

始终可定制化的精整

边缘/板材结合质量的选择可进行最灵活的更改,最大限度地节省重新装备工具所需的时间。EVA、PUR、EVA / EVA、EVA / PUR、PUR / PUR、SLIM LINE、AirFusion+无胶合线、施胶、自动换胶循环只是stefani one可实现的一部分可能性。

FAST AND SIMPLE MANAGEMENT
The eye-M console and the Maestro active interface software, which has been unified across all SCM technologies and capable of interfacing with line supervision software, provide the operator with an efficient and intuitive working experience.

技术数据
最大进给速度 m/min 40
卷材厚度 mm 0.3 - 3
条材厚度(预切/单板条) mm 0.4 - 1
实木线条最大厚度 mm 25
板材厚度   mm 8 - 60(8-80可选)
板材尺寸   根据合成情况
所需的最大总体尺寸 m 15
气动系统 MPa 6
胶合技术   EVA, PUR, EVA/EVA, EVA/PUR, PUR/PUR, SLIM LINE
无胶合线技术   AirFusion+
可集成在一个单元中
机床版本   左侧(可根据需要提供右侧版本)
板材导入方式   手动(标准)
半自动(可选)
自动(可选)
Software
中等
